E895 BTF Multiplicity Cuts
|
1.85 AGeV |
3.91 AGeV |
6.0 AGeV |
8.0 AGeV |
| 2 fm
(1.8 %) |
165 |
220 |
240 |
250 |
| 3 fm
(4.2 %) |
150 |
200 |
220 |
230 |
| 4 fm
(7.4 %) |
135 |
175 |
195 |
205 |
| 5 fm
(12 %) |
120 |
145 |
165 |
175 |
| 6 fm
(17 %) |
100 |
115 |
130 |
140 |
| 7 fm
(23 %) |
75 |
85 |
95 |
105 |
| 8 fm
(30 %) |
45 |
55 |
60 |
65 |
Notes:
(1) See all the notes assosicated with the JTF cuts. These all apply to
the BTF cuts as well.
(2) Cuts are based on an additional level of extrapolation as the target
related trigger bias is used and not the inclusive trigger bias.
(3) The target related trigger bias for 6 AGeV is not currently available
and the cuts suggested for 6 AGeV are based on interpolations from the
4 and 8 AGeV and from the shape of the Multiplicity distribution.
Data Vectors (mult,cts,mult_err,cts_err) used to tabulate this
information provided by Sergei Panitkin:
2
AGeV
4
AGeV
6
AGeV
8
AGeV

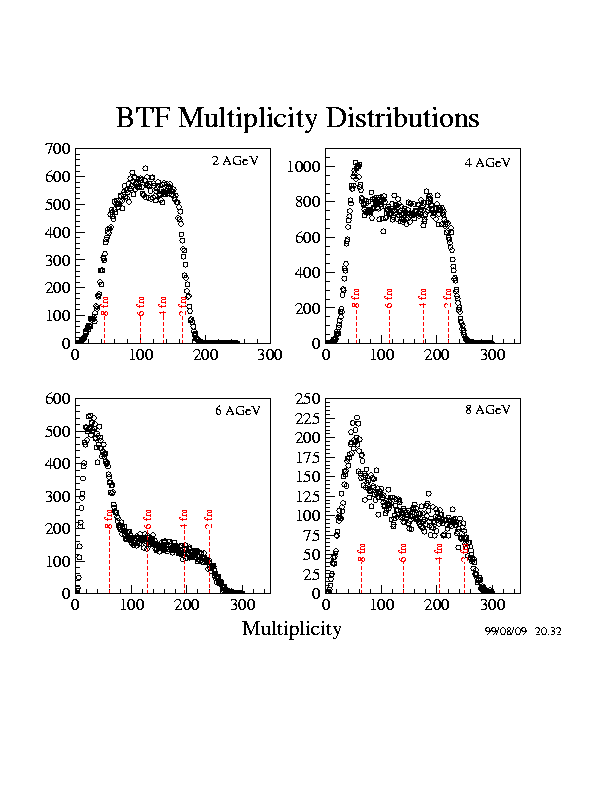

Mulitiplicity Distributions (with a DCA < 2.5 cm track quality cut):
GIF
PS

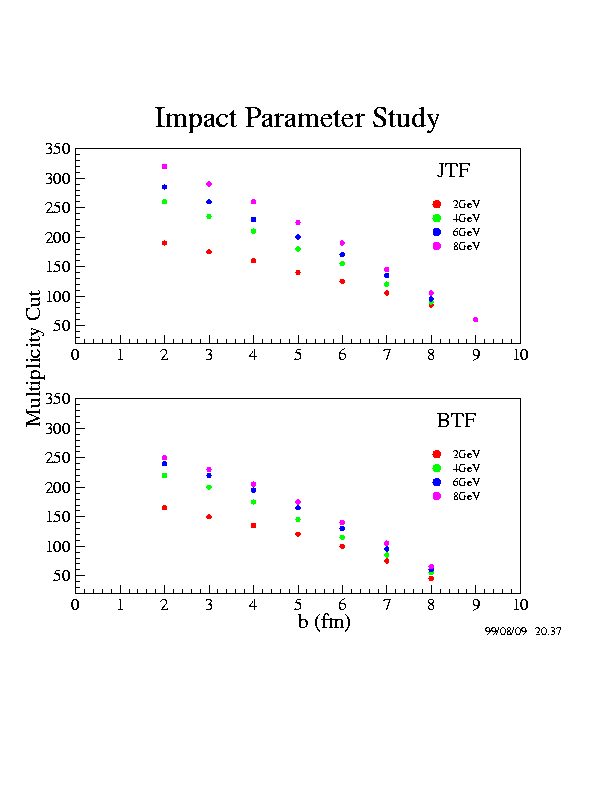

JTF/BTF Comparison:
GIF
PS
