Minimum Associated pT = 2.0 GeV
Minimum Associated pT = 3.0 GeV
Minimum Associated pT = 4.0 GeV
Single Triggers -- dAu
Available statistics in trigger/associated bins.
|
Each panel shows dN/d&Delta&phi for a slice of 8 to 10 jet pT and successive
1GeV slices in associated pT running from 3 to 7 GeV as
indicated by the titles.
|

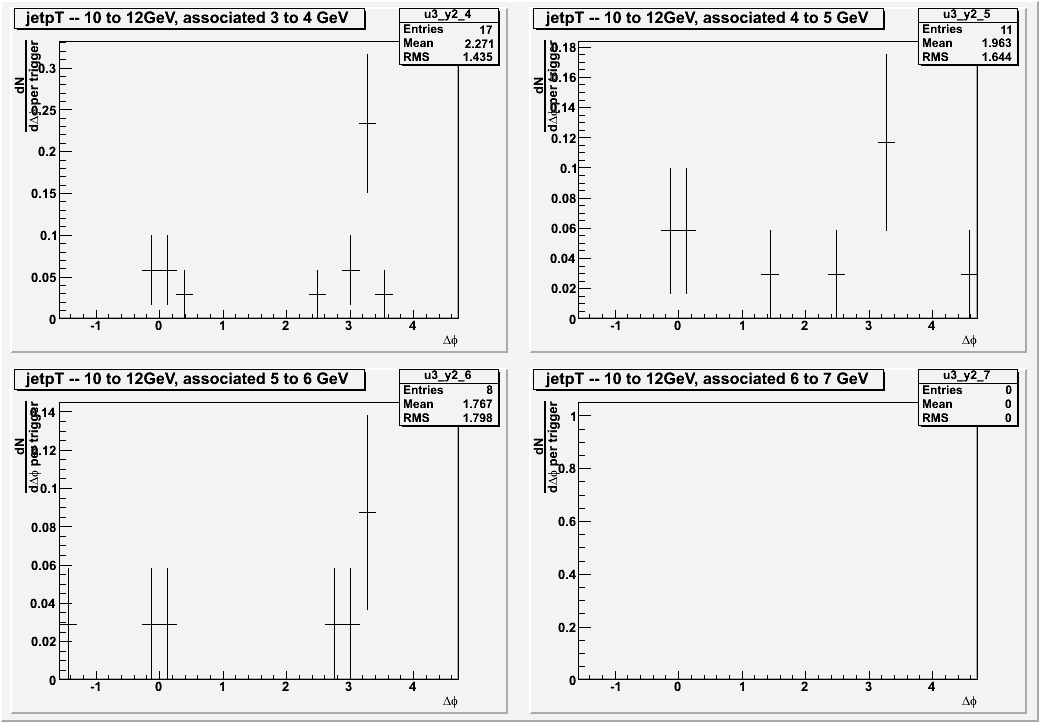

Each panel shows dN/d&Delta&phi for a slice of 10 to 12 jet pT and successive
1GeV slices in associated pT running from 3 to 7 GeV as
indicated by the titles.
|
Single Triggers -- AuAu
Available statistics in trigger/associated bins.
|
Each panel shows dN/d&Delta&phi for a slice of 8 to 10 jet pT and successive
1GeV slices in associated pT running from 3 to 7 GeV as
indicated by the titles.(Flat background subtracted)
|

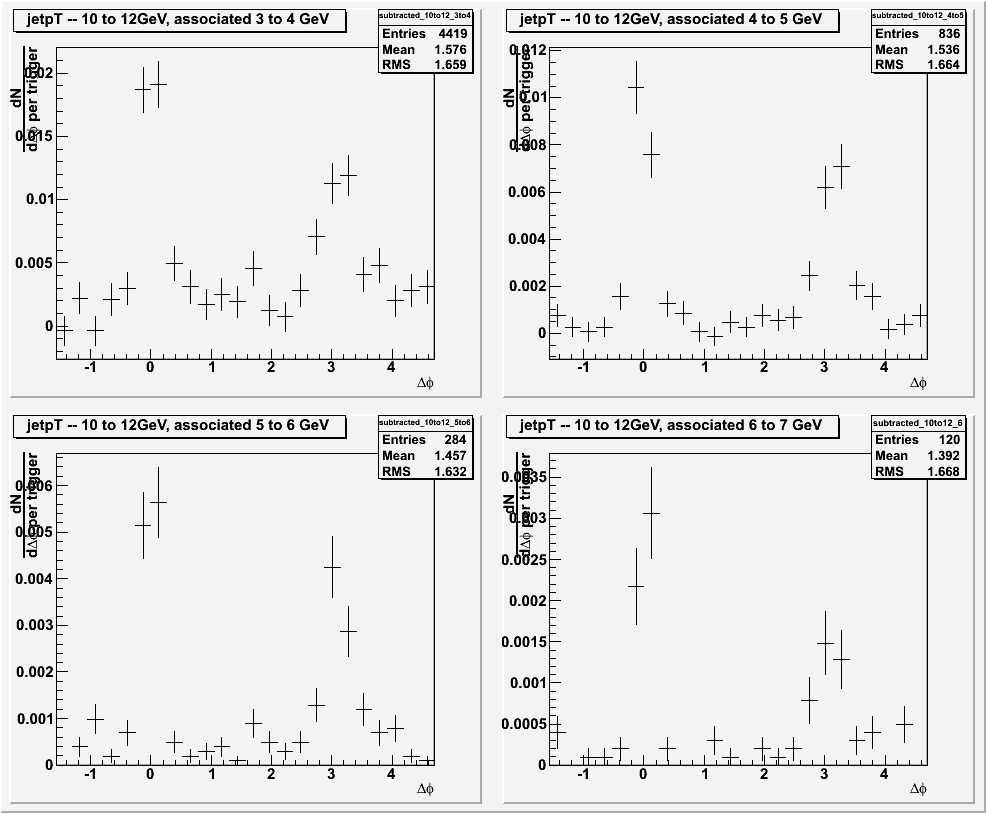

Each panel shows dN/d&Delta&phi for a slice of 10 to 12 jet pT and successive
1GeV slices in associated pT running from 3 to 7 GeV as
indicated by the titles.(Flat background subtracted)
|
Cluster Triggers -- dAu
Available statistics in trigger/associated bins.
|

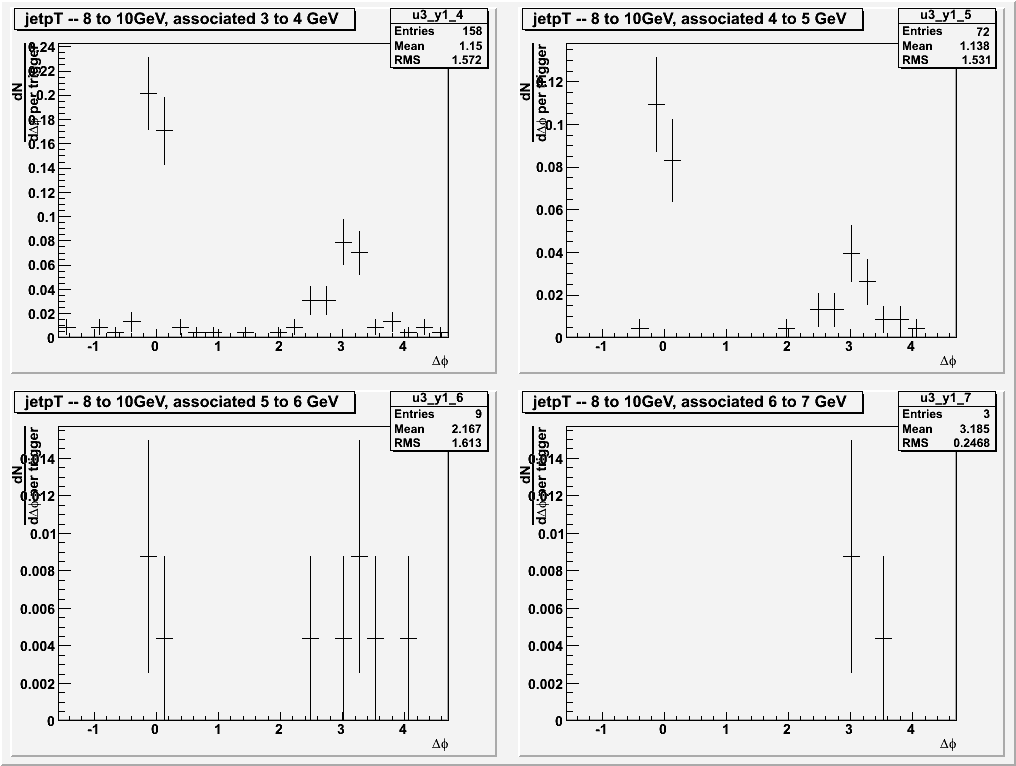

Each panel shows dN/d&Delta&phi for a slice of 8 to 10 jet pT and successive
1GeV slices in associated pT running from 3 to 7 GeV as
indicated by the titles.
|

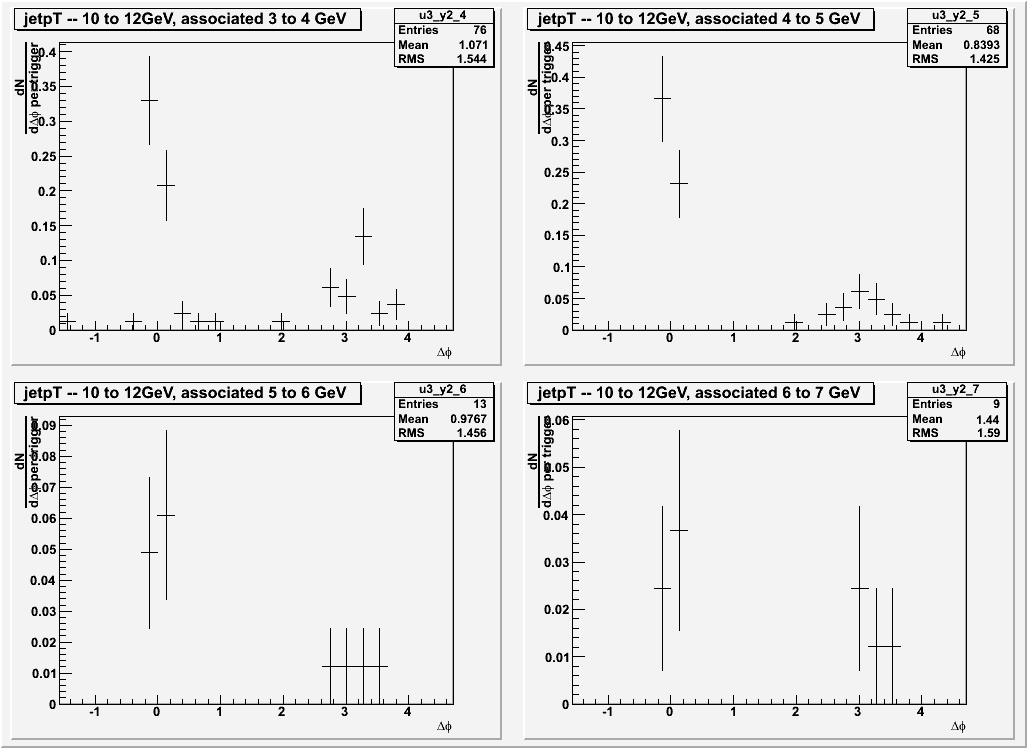

Each panel shows dN/d&Delta&phi for a slice of 10 to 12 jet pT and successive
1GeV slices in associated pT running from 3 to 7 GeV as
indicated by the titles.
|
Cluster Triggers -- AuAu
Available statistics in trigger/associated bins.
|
Each panel shows dN/d&Delta&phi for a slice of 8 to 10 jet pT and successive
1GeV slices in associated pT running from 3 to 7 GeV as
indicated by the titles.(Flat background subtracted)
|
Each panel shows dN/d&Delta&phi for a slice of 10 to 12 jet pT and successive
1GeV slices in associated pT running from 3 to 7 GeV as
indicated by the titles.(Flat background subtracted)
|
Yields -- dAu

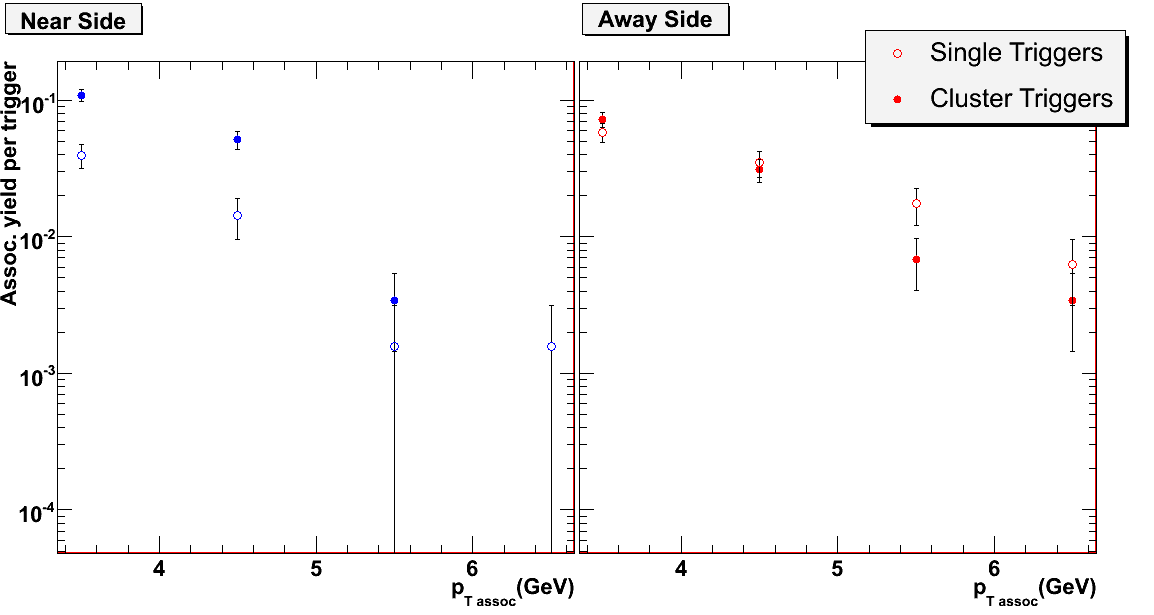

Near(left panel) and away (right panel) side yields for 8 to 10 GeV jet pT Cluster and Single Triggers.
|

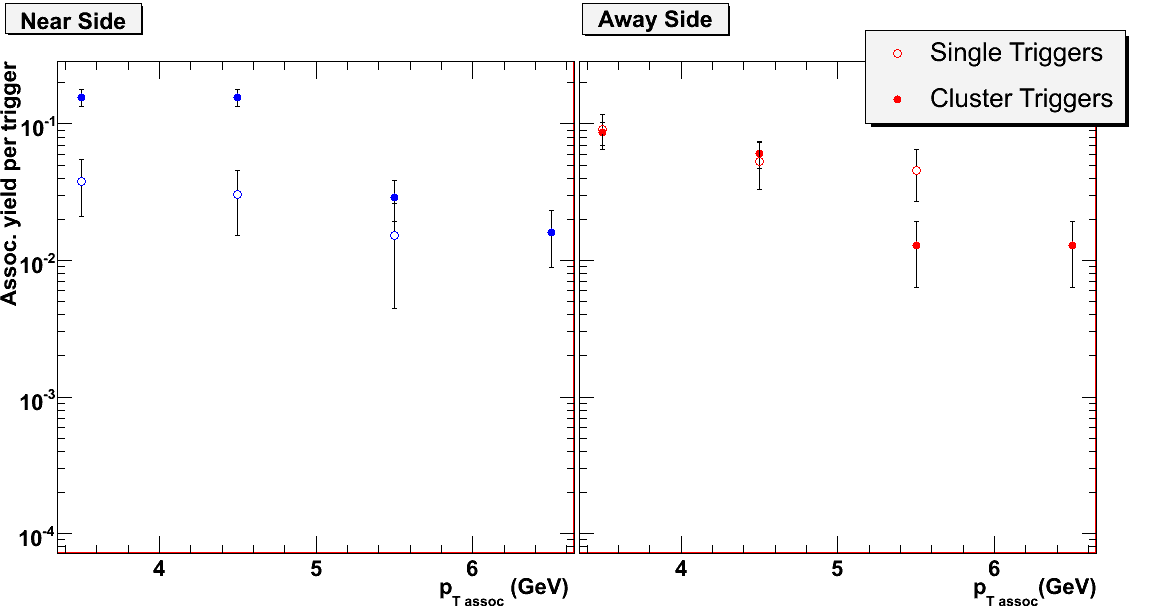

Near(left panel) and away (right panel) side yields for 10 to 12 GeV jet pT Cluster and Single Triggers.
|
Yields -- AuAu

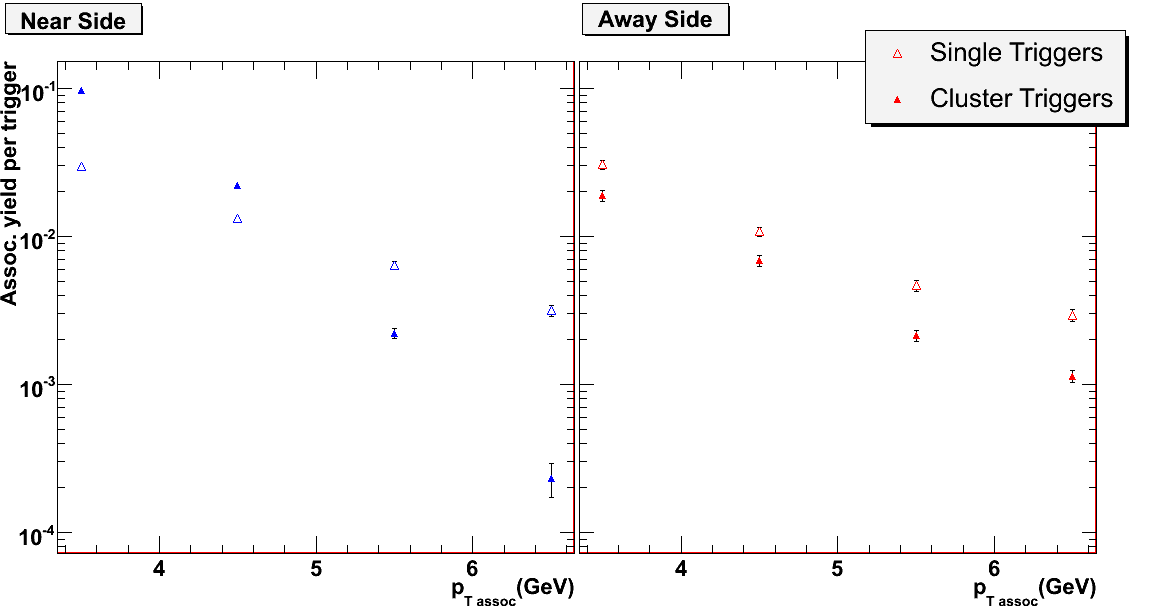

Near(left panel) and away (right panel) side yields for 8 to 10 GeV jet pT Cluster and Single Triggers.
|

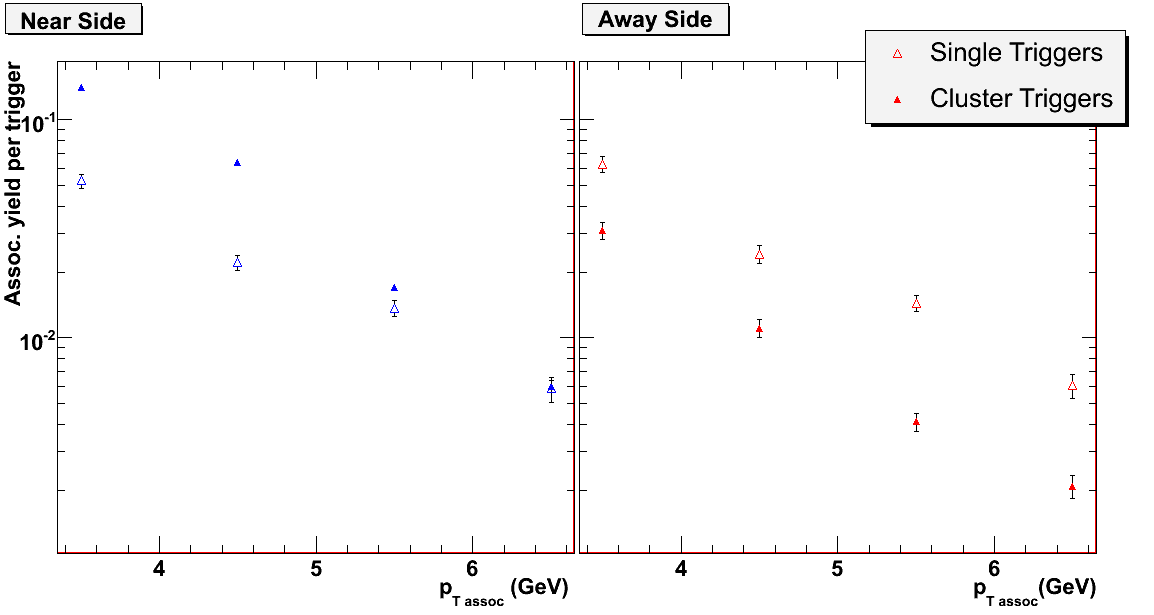

Near(left panel) and away (right panel) side yields for 10 to 12 GeV jet pT Cluster and Single Triggers.
|
Yields -- dAu/AuAu
Single
Near(left panel) and away (right panel) side yields for 8 to 10 GeV jet pT Single Triggers dAu & AuAu.
|
Near(left panel) and away (right panel) side yields for 10 to 12 GeV jet pT Single Triggers dAu & AuAu.
|
Cluster

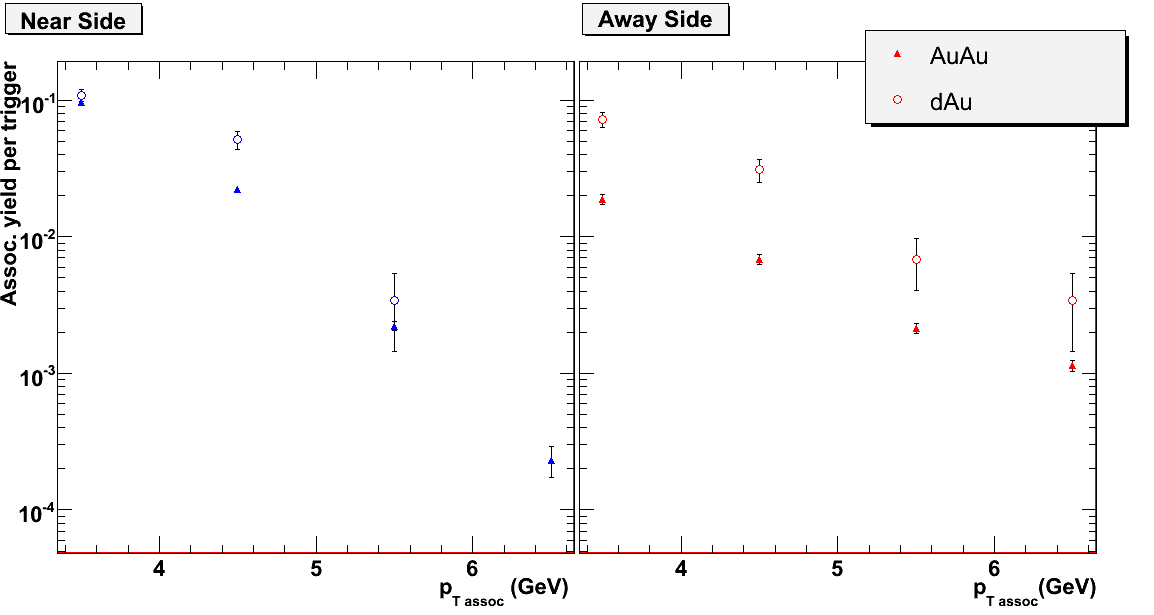

Near(left panel) and away (right panel) side yields for 8 to 10 GeV jet pT Cluster Triggers dAu & AuAu.
|
Near(left panel) and away (right panel) side yields for 10 to 12 GeV jet pT Cluster Triggers dAu & AuAu.
|
Cluster + Single

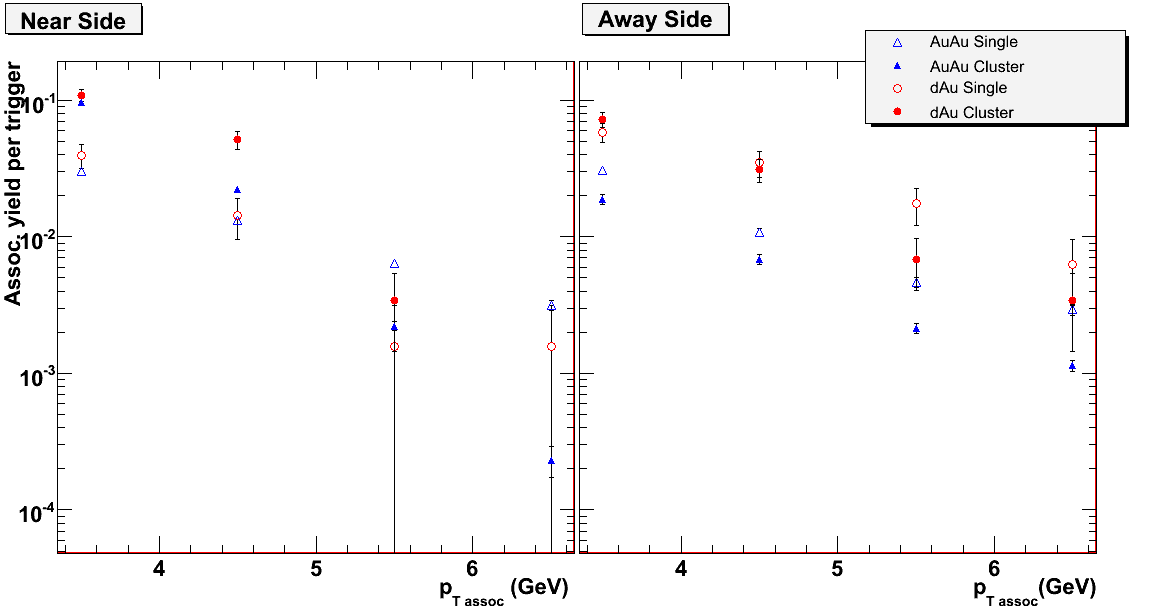

Near(left panel) and away (right panel) side yields for 8 to 10 GeV jet pT Single and Cluster Triggers dAu & AuAu.
|

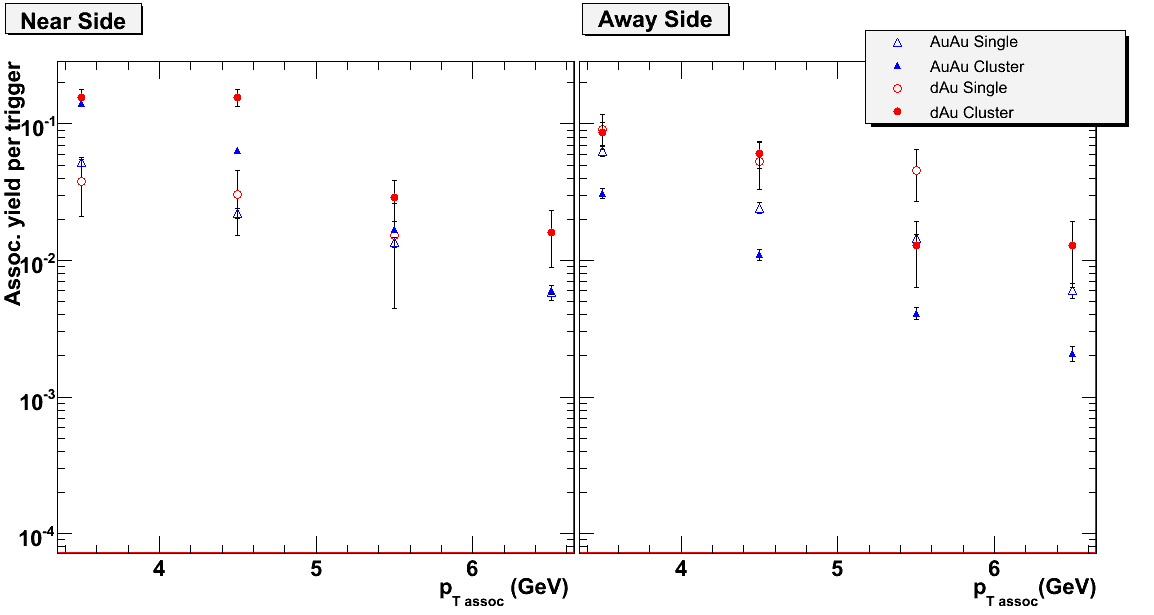

Near(left panel) and away (right panel) side yields for 8 to 10 GeV jet pT Single and Cluster Triggers dAu & AuAu.
|
Multi-Particle Clusters
Away side yields for 8 to 10 GeV jet pT Multi-Particle Cluster Triggers AuAu for different minimum
associated pT cuts.
|

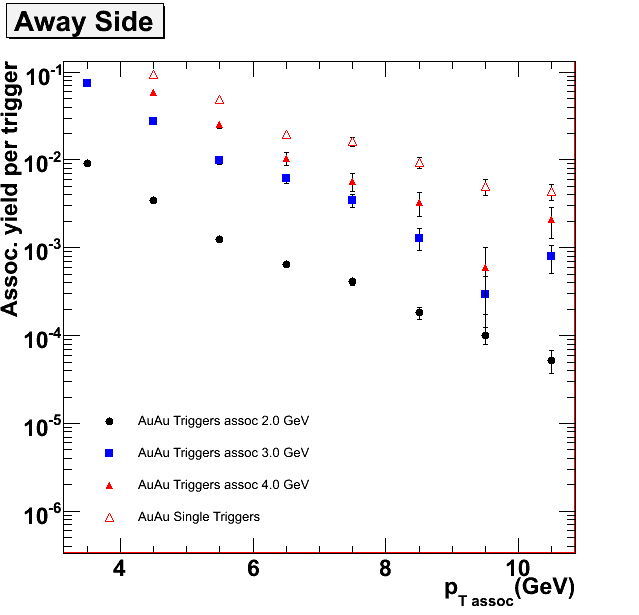

Away side yields for 12 to 15 GeV jet pT Multi-Particle Cluster Triggers AuAu for different minimum
associated pT cuts.
|
Away side yields for 12 to 15 GeV jet pT Cluster (multi & single) Triggers AuAu for different minimum
associated pT cuts.
|
